The 50KG Heavy-Duty Collaborative Palletizing Robot provides fast, flexible and reliable automated palletizing. Easy to operate and adjust, it reduces manual handling and labor intensity. It can work independently or connect with pallet dispensers and conveyors for a complete end-of-line palletizing system.
Item No :
SM-AP50Order(MOQ) :
1SETShipping Port :
Any Port of China

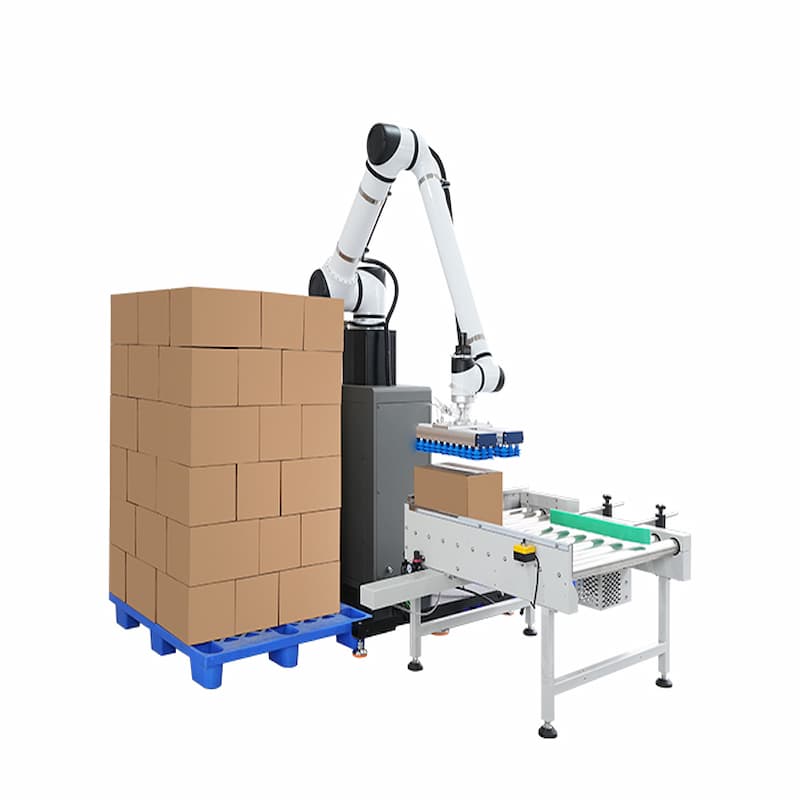

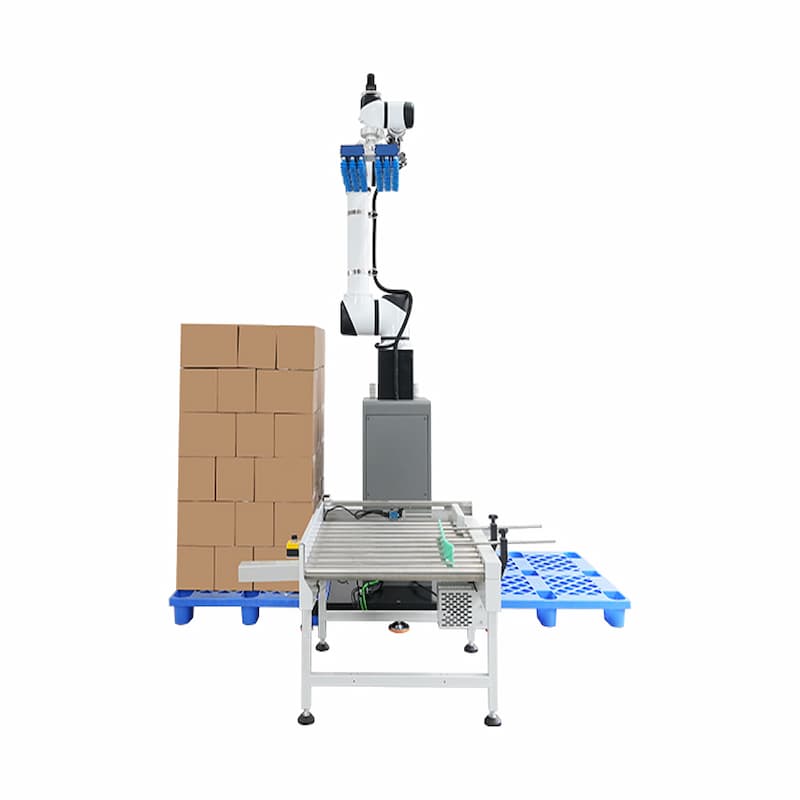

Automatic 50KG heavy-load Collaborative Palletizing Robot
Flexible Automated Palletizing for Heavy Loads and End-of-Line Packaging
Introduction
The 50KG Heavy-Duty Collaborative Palletizing Robot is designed to make palletizing faster and easier. It can work safely alongside operators, helping reduce manual work and heavy lifting. Safety sensors help protect workers during operation.
The robot is easy to use with a simple touch screen. Operators can quickly adjust the palletizing settings for different products and carton sizes. It offers stable performance, accurate palletizing and flexible operation for different production needs.
It can be used on its own or connected with an automatic pallet dispenser and pallet conveyor to build a completutomated palletizing system.
Application Industries:
Suitable for palletizing cartons, bags and other packaged products in the food, pharmaceutical, beverage, cosmetics, daily necessities and metal products industries.
Technical Parameters
| Items | Technical Parameters |
| Palletizing speed | 6-8 times/minute |
| Load | 50KG |
| Overall height of equipment | 2650mm |
| Equipment Weight | 550KG |
| Equipment Power | 4KW |
| Working Radius | 2000mm |
| Applicable Products | Cartons, film bags, woven bags, barrels |
| Applicable pallet size | L: 200-1200mm W: 200-1200mm H: 100-600mm |
| Pallet Supply Method | Manual placement/automatic placement |

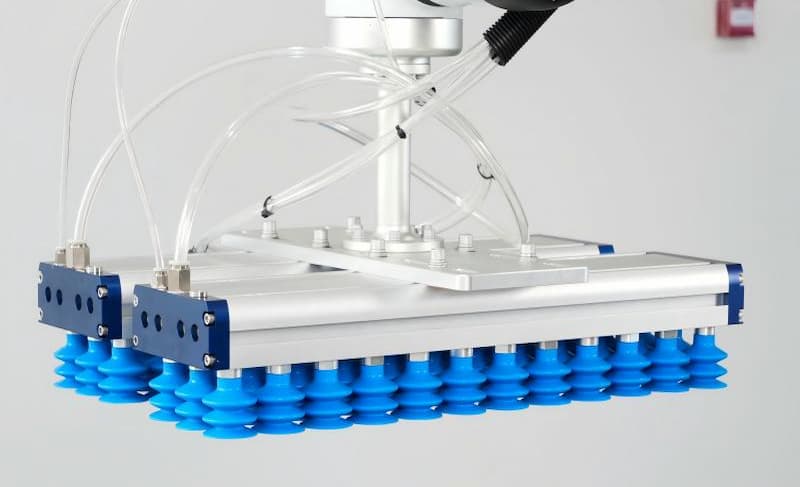

| Palletizing Gripper | Suction cup/clamp |
| Palletizing Height | 300-2200mm from the ground (determined by the gripper and carton height) |
| Applicable power supply | 220v50HZ |
| Protection level | IP54 |
Machine Details
Advantages
Open & Flexible System
Easy to customize, program and upgrade remotely.

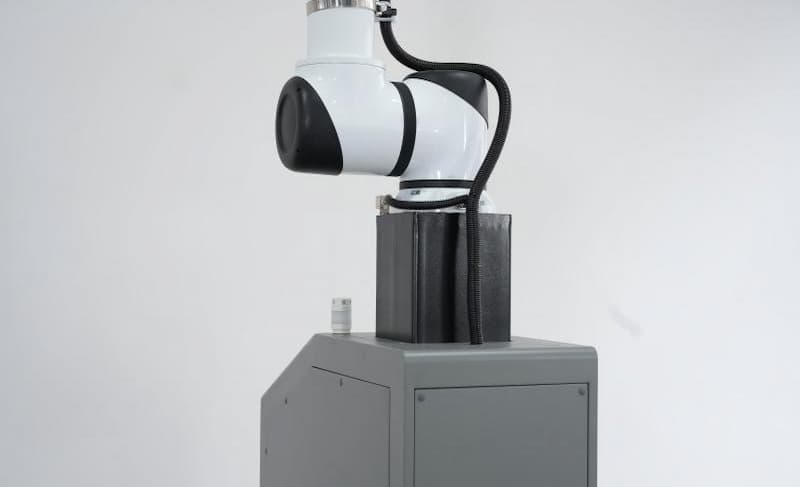

Safe Joint Design
Direct-drive joints and built-in brakes reduce slipping and falling risks.
3D Safety Radar
Detects people and obstacles for 360° safety protection.
Safe 48V Power
Low-voltage design for safer operation and lower energy use.
Stable & Precise
Fixed-axis design delivers accurate and reliable movement.

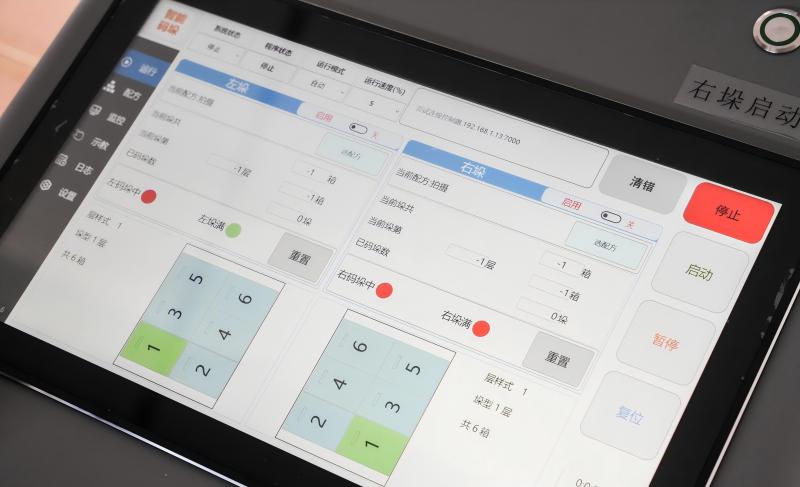

Easy to Operate
One-click startup and visual controls make setup quick and simple.
Compact & Powerful
Handles up to 50 kg while taking up only about 6 m² of floor space.
FAQ
The robot can handle loads of up to 50 kg, making it suitable for heavy cartons and other end-of-line packaging applications.
Yes. No programming is required for basic operation. The visual interface makes setup, monitoring, and changing palletizing patterns simple.
Yes. The robot can store more than 1,000 palletizing recipes, allowing you to quickly switch between different carton sizes and pallet patterns.
Yes. The robot uses 3D safety radar to detect people and obstacles around the working area. Multiple radars can work together to provide 360° safety protection.
